Check the container! – Solr is moving

The idea of moving the Solr instances was thus born. The next step was to develop a way to recreate the various Solr plans as containers. Subsequently, each affected TYPO3 installation had to be given the new URL for the Solr server and new credentials, and then completely reindexed once so that the new Solr search server could be filled with content. We took the opportunity to upgrade all Solr instances to the latest software version at the same time.

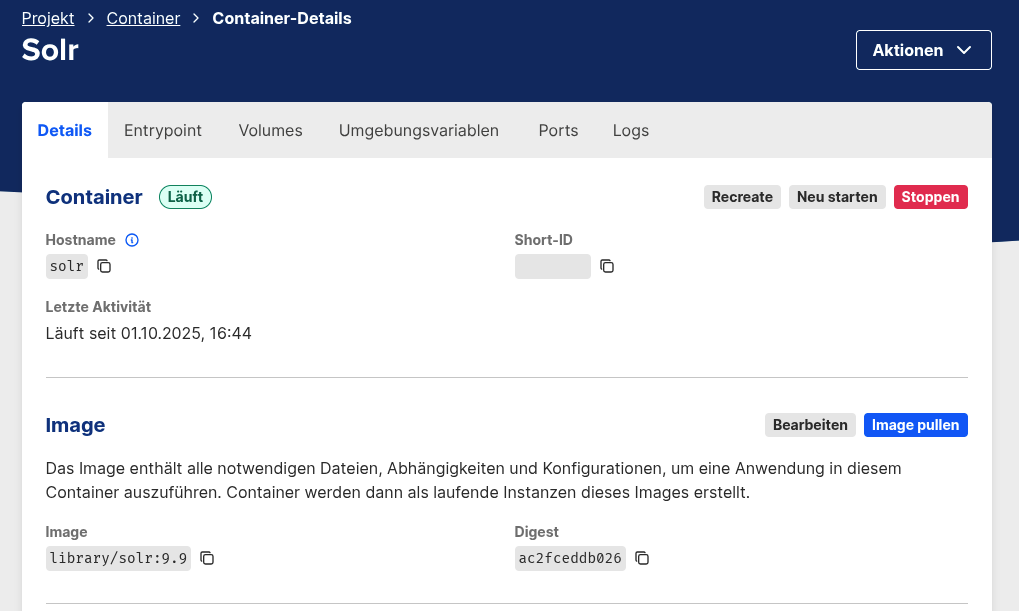

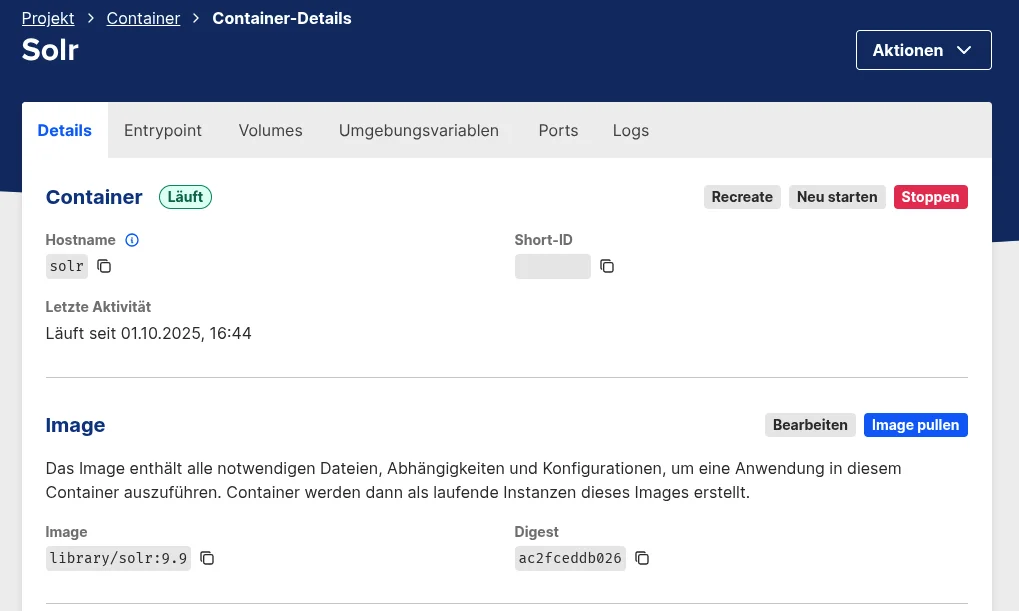

Operating Solr as a container involves a little extra work. For example, we have to make sure that the configuration required by TYPO3 is loaded into the search server. In addition, the required Solr cores must be created. Based on the official Solr Docker image, several XML files with the field configuration and the basic configuration of Solr itself are stored in its data directory.

We are already successfully using Terraform to automatically manage part of our infrastructure. Fortunately, there is a Terraform provider for mStudio that allows us to programmatically create resources there. This will enable us to later place the Solr administration interface on internally used host names and make it accessible, including authentication. This approach provides us with infrastructure as code and creates a solution that we can continue to use in the long term, even when new site languages – and thus Solr cores – are added.

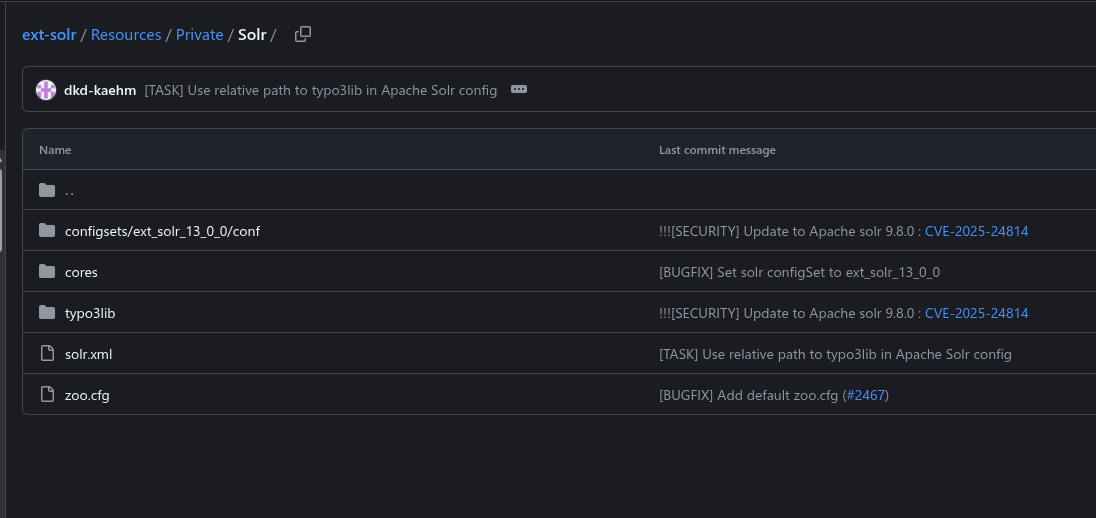

Mittwald itself has recognized that there is a need to create Solr instances programmatically on the cloud infrastructure. Therefore, there is a corresponding Terraform module that shows a possible way to implement this with Terraform. The module starts a container based on the official Solr Docker image and then supplements the configuration set from the TYPO3 extension solr repository. This way, it can also be updated later. As a result, a typical project configuration now looks like this:

locals {
  mittwald_project_id = "02159b81-c0bb-4f62-ae57-8dd2e6bd5113"

  solr_version = "9.9"
  solr_heap = "1g"
  solr_hostname = "solr.live.mfc.invalid"

  solr_users = {
    cs = "9PxfZq9si08ebsxB1pwOylsB6uw3nCAkKz4dlKPzfws= ZGtkNHhyNWE5czAxN2xhZA=="
    mp = "2/JqksIj3gA3lXgA7E9BuW9D4t8Ki+x/yWLRUGcFFBY= bjljYzdzbnYwNGVxcTB5ag=="
    sk = "wE0pHBx3d0osQUP2i2LSDiGeqfJhSuc1viaWB5+y6Ao= cWIwZTY3cmNkbDh2aXB1Ng=="

    mfd = "Slw0Dts2bGMS7hKEyuXSxYMpahP8eaAF/3wAXyluwiQ= ZHJlcHlhcGwwcHlpZXBvcQ=="
  }
  solr_cores = {
    "www_marketing_factory_de_de_de" = {
      language = "german"
    }
    "www_marketing_factory_com_en_us" = {
      language = "english"
    }
    "sg_marketing_factory_de_de_de" = {
      language = "german"
    }
    "sg_marketing_factory_com_en_us" = {
      language = "english"
    }
  }
}

It defines the Solr version, the Solr cores to be set up, including their language, and the users who should have access. This includes one at the end that TYPO3 itself will use. At the beginning, you specify the Mittwald project in which the whole thing should be created. The project ID is stored for this purpose—a UUID that uniquely describes each project in the cloud infrastructure.

One aspect must not be forgotten: security. The Solr instances previously provided by Mittwald were operated behind a reverse proxy, which also performed authentication via HTTP Basic. The Solr container itself does not currently provide this functionality. TYPO3 later communicates with the container via an internal, private network, so this is not an issue. However, you will usually want to access the Solr admin from the outside as well. Since there is no built-in option in the cloud infrastructure to enable authentication for domains (Mittwald delegates this task to the underlying application), we have enabled authentication in Solr.

This is done using a security.json file, which is stored in the Solr data directory. This would even allow fine-grained role and rights management. However, since we do not need this level of complexity, we have decided not to use it. The necessary user passwords are stored as hashes. There are online tools that can generate the required format, including salt, locally via JavaScript in the browser, which are very useful. Each user can then hash their own password and commit it to the configuration repository, ensuring confidentiality is maintained.

In the example, this file looks as follows (the hashes are not real, of course, and have been newly generated for this example 😉):

{
  "authentication": {
    "blockUnknown": true,
    "class": "solr.BasicAuthPlugin",
    "credentials": {
      "cs": "9PxfZq9si08ebsxB1pwOylsB6uw3nCAkKz4dlKPzfws= ZGtkNHhyNWE5czAxN2xhZA==",
      "mfd": "Slw0Dts2bGMS7hKEyuXSxYMpahP8eaAF/3wAXyluwiQ= ZHJlcHlhcGwwcHlpZXBvcQ==",
      "mp": "2/JqksIj3gA3lXgA7E9BuW9D4t8Ki+x/yWLRUGcFFBY= bjljYzdzbnYwNGVxcTB5ag==",
      "sk": "wE0pHBx3d0osQUP2i2LSDiGeqfJhSuc1viaWB5+y6Ao= cWIwZTY3cmNkbDh2aXB1Ng=="
    },
    "forwardCredentials": false,
    "realm": "Solr administration",
    "scheme": "basic"
  },
  "authorization": {
    "class": "solr.RuleBasedAuthorizationPlugin",
    "permissions": [
      {
        "name": "security-edit",
        "role": "admin"
      }
    ],
    "user-role": {
      "cs": "admin",
      "mfd": "admin",
      "mp": "admin",
      "sk": "admin"
    }
  }
}

All previous Solr plans have now been migrated, and the migration went smoothly. The new setup allows us to run the services related to a project together with the project itself on the same infrastructure. The use of Terraform has the additional advantage that we can also use Terraform to perform necessary tasks such as entering IP addresses for access to Solr Admin, provided that there is a Terraform provider for the respective domain registrar. This further reduces manual work and makes the overall process less error prone.

With container hosting, we can now move other things that are currently being operated around the projects, in addition to Solr, as well - provided they are available as Docker images. We already have some ideas in this regard, so stay tuned!
